sanicompact in situ


A super-compact WC unit with a built in macerator that’s perfect for small cloakrooms. It even features a wash-basin inlet and needs no cistern to make the most of the smallest spaces.


Why choose this product?
  • Ultra-compact toilet with built-in macerator
  • Automatic push-button flush connected directly to the domestic water supply
  • Needs no cistern
  • Features a soft-close toilet seat
  • Water saving flush system
  • Has a depth of just 430 mm
  • Able to add a wash basin to this small WC for a cloakroom


Pump Use

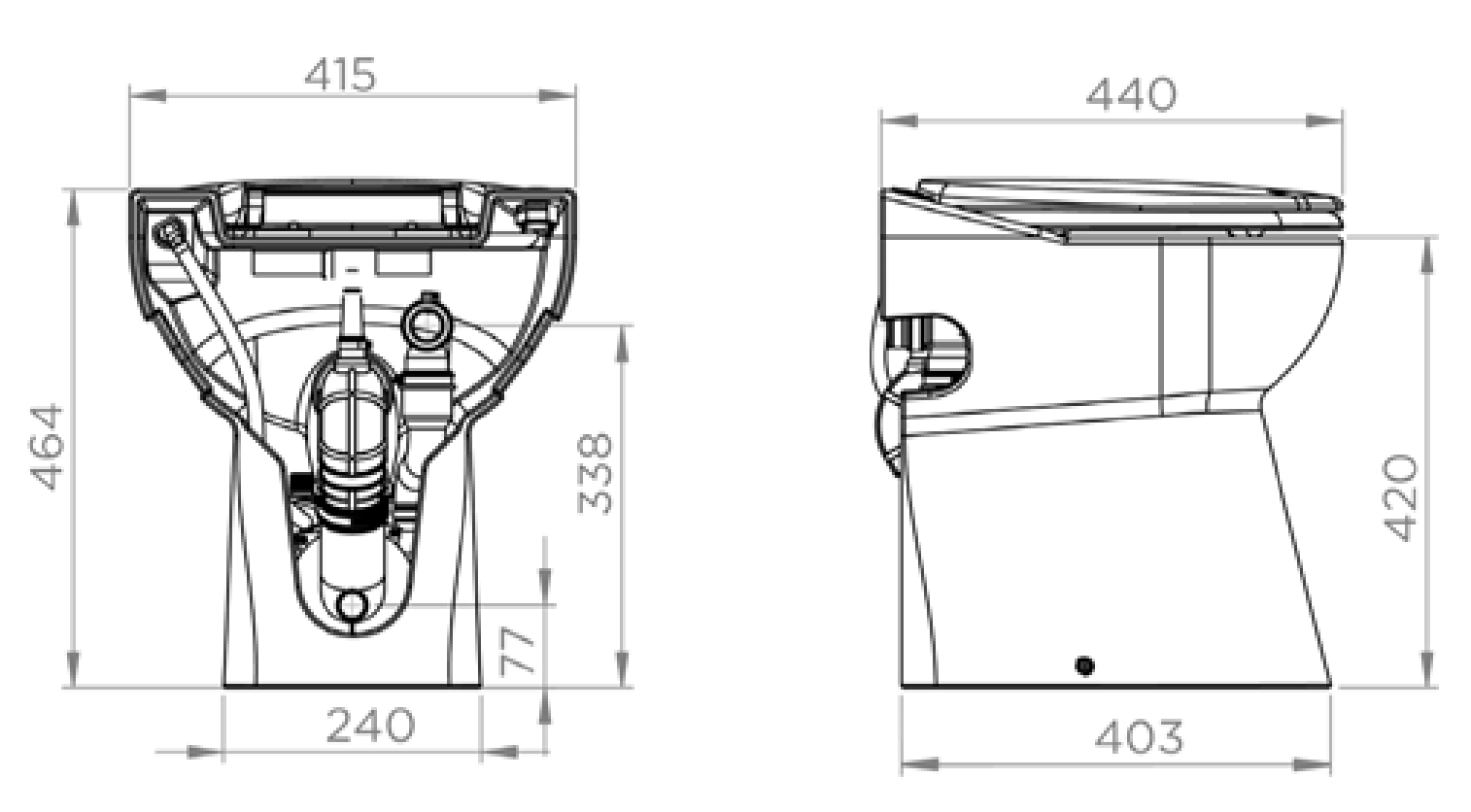

Sanicompact diagram
Included in the box
  • Sanicompact
  • Non-return valve
  • Floor fixings

Dimensions l x w x h (mm)
390 x 430 x 445

Tech Sheet

Saniflo Motor induction motor ( no carbon brushes or gears to wear out ).
Watts (Consumption) 800w
Electrical Supply 220-240V 50Hz
Flow rate at max head litres/min 46
Horizontal Discharge 30 metres
Vertical Discharge 3 metres
Gravity fall on horizontal installations 1:100
Discharge Pipe Diameter 32mm
Materials polypropylene, C.R.P., stainless steel, neoprene, ceramics.
Type of WC Pan (not included) ceramic
Motor RPM 2800 RPM
Normal Running Time WC 30 secs
Dimensions (vertical height is measured from floor level) (L)390mm x (W)430mm x (H)445mm
Technote – Saniflo recommend a Saniflo approved engineer for every Sanicompact installation, repair, and service – phone PumpMaster on 0800 2922 542 Sanicompact requires a minimum of 1.7 Bar water supply pressure.



Saniflo approved engineers – Sales – Service – Spares – Spare Parts – Repairs
Call PumpMaster on 0800 2922 542

Supporting Accessories
